HyperRides

Talaria Sting R MX4 (Oil Change Required) - Deposit (60V 8Kw 53Mph) MSRP $4500+

Talaria Sting R MX4 (Oil Change Required) - Deposit (60V 8Kw 53Mph) MSRP $4500+

$120.00 USD
$120.00 USD
Sale Sold out
Shipping calculated at checkout.
Assembly Options
Please contact us for availability

Pick Up Option: After deposit payment, please wait for our ready to pick up email. You can pay the remaining balance after you arrive at our store. Remaining Balance must be paid by CASH / Venmo. Any payment that charges a fee will pass back to customer.

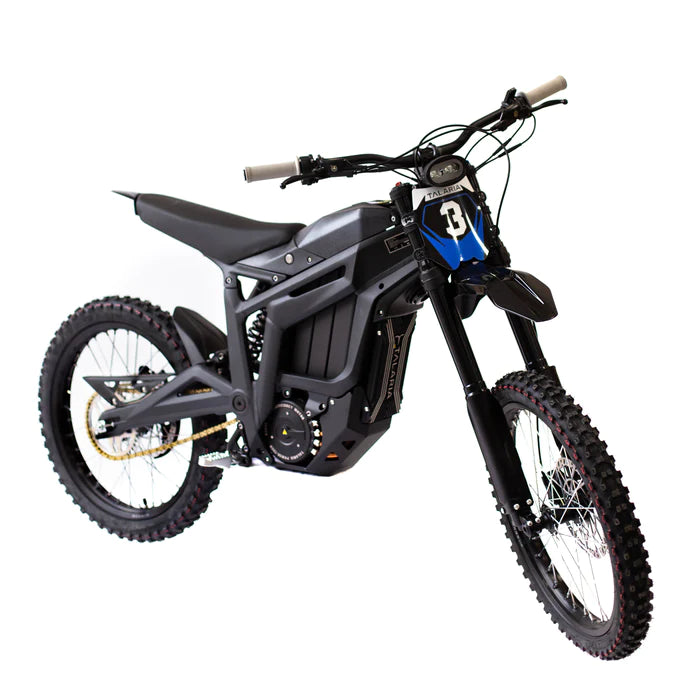

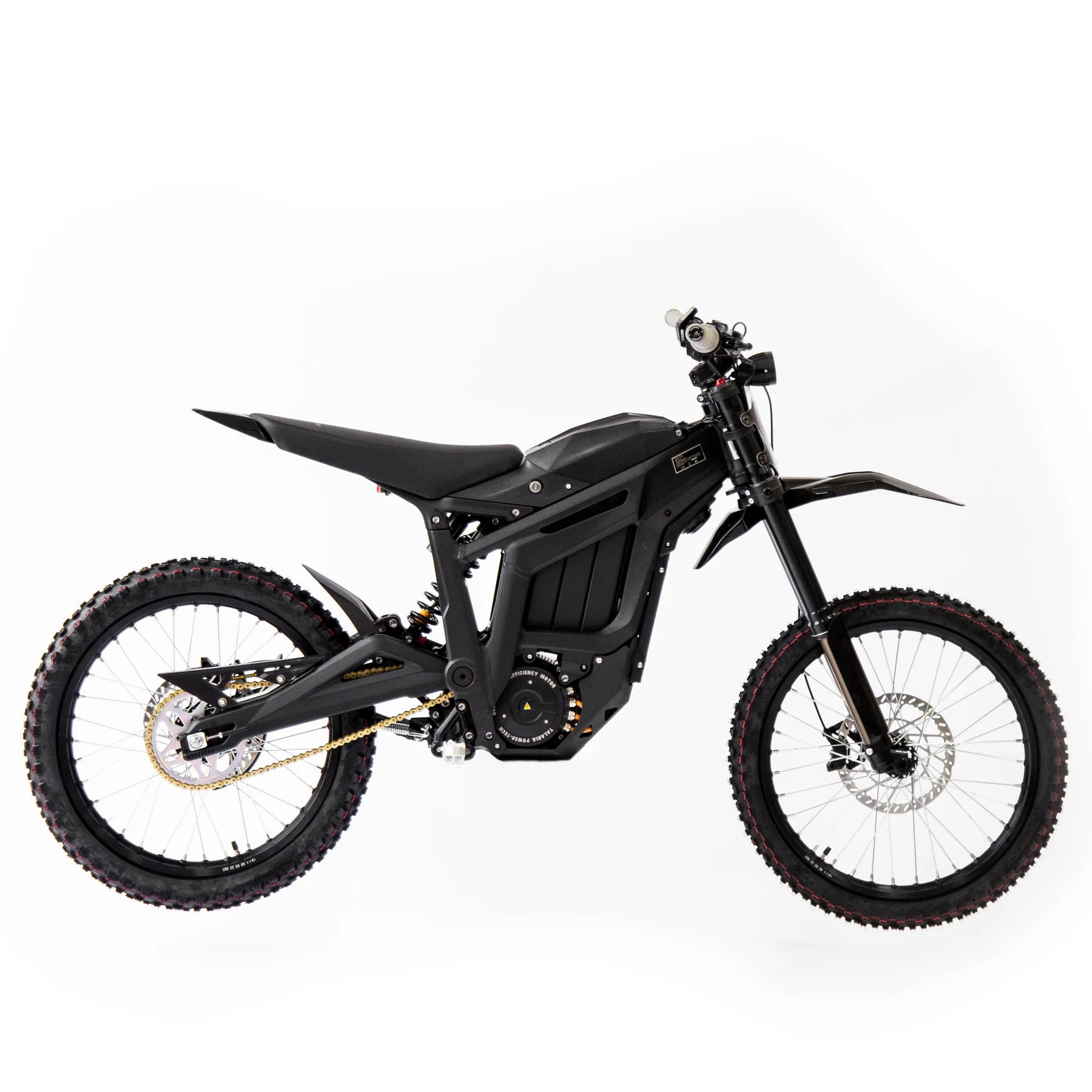

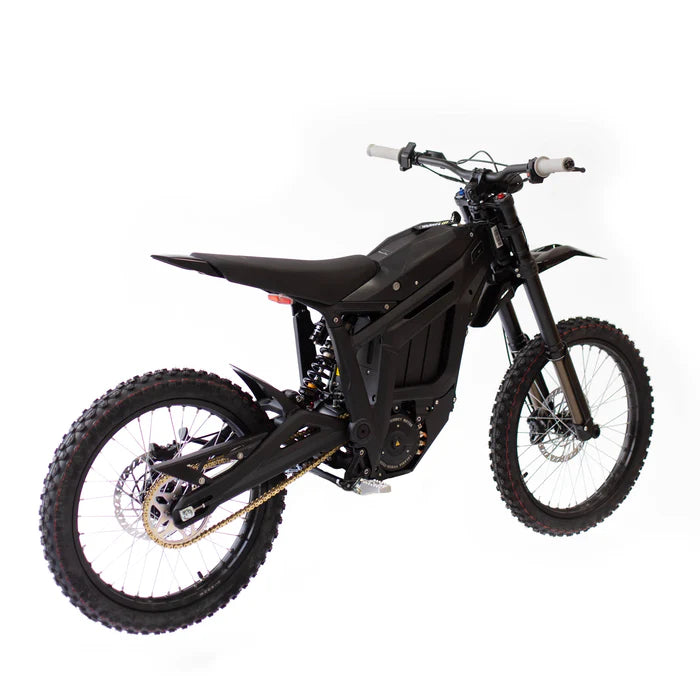

Talaria Sting R MX4 - Black Frame

The next-gen Talaria Sting R MX4 takes the CAD designed lightweight frame design and intelligent gear drive of its predecessor to the next level. With a maximum power output of 8KW and extended range, improved torque, maneuverability, and low noise operation, this model is ready to exceed expectations.

Highlights include peak power up to 8KW; 45AH improved battery for best-in-class range and battery life; gearbox for silent, reliable power transmission; stronger frame & swing arm; adjustable regenerative braking; fast charge time (3 hours); and improved battery connector.

BUILT FOR YOUR NEXT ADVENTURE

  • Peak Power up to 8KW making it the most powerful of it's category
  • 45AH Improved Battery offering best-in-class range and battery life
  • Gearbox providing silent and reliable power transmission (No belt to change)
  • Stronger Frame & Swing Arm
  • Regenerative Braking (Can be adjusted easily on the display for optimum performances)
  • Fast Charging Time (3 Hours)
  • Improved Battery Connector

2023 UPGRADES

  • Power Increase : 4 KW Rated Power / 8KW Peak Power (30% more than Sting MX3)
  • Improved Range : 45AH Battery with LG Cells
  • Braking System : 220mm Upgraded Brake Rotors
  • Braking System : 4-Piston Upgraded Brake Calipers / Master Cylinders
  • DC IPM Improved Motor with 94% efficiency
  • Suspension : Fastace or Talaria Factory
  • New Seat Design
  • Rear Brake Disc Guard
  • Upgraded 125 Amp circuit breaker

TECH SPECS

VEHICLE

  • Chassis Material: 6061 T4 & T6 Aluminium Alloy
  • Process Method: Forged by 6000 Tons Pressure
  • Surface Method: Anodizing
  • Headlight: LED
  • Front Fork: Fastace / Talaria Factory
  • Rear Shock: Fastace / HT / Talaria Factory
  • Wheel Size: 19”
  • Tire: FR 70/100-19  /  RR 80/100-19
  • Max. Range: 74.56mi @ 15.53mi/h
  • Net Weight: 145.05lb / 66 Kg (Including Battery)
  • Vehicle Dimension: 1880mm x 770mm x 1088mm
  • Seat Height: 840mm
  • Wheelbase: 1250mm
  • Handlebar Length: 760mm
  • Ground Clearance: 300mm

MOTOR

  • Motor type: DC IPM (Interior Permanent Magnet)
  • Mounting Position: Middle of the Frame
  • Weight: 7.0 kg
  • Motor Ext. Diameter: 180mm
  • Peak Efficiency: 92%
  • Cooling Method: Air Cooled

CONTROLLER

  • Controller Type: FOC
  • Weight: 2 Kg
  • Dimension: 248mm x 128mm x 50mm
  • Peak Efficiency: 92%
  • Highest Work Temp: 100°

POWER SYSTEM

  • Nominal Voltage: 60V (DC)
  • Rated Power: 4KG (Factory limited to 800W)
  • Maximum Speed: 85 Km/h (Factory limited to 32 Km/h)
  • Nominal Torque: 45 N.M

TRANSMISSION

  • Gear Ratio: 8.35 (44T) / 9.18 (48T)
  • 1st Transmission: Gearbox
  • 2nd Transmission: Chain

ELECTRONIC

  • Battery Pack: 60V 45AH
  • Battery Size: 170mm x 140mm x 380mm
  • Battery Weight: 12.85 KG
  • Battery Cells: LG Brand 21700 Cell (5000 MAH/Cell)
  • Speedometer: Speed / Battery Level, Voltage, cycle / Odometer
  • Regen Adjustement: 4 Levels Adjustable in the Speedometer
