Pedal Assist & Throttle
Use the lower levels of pedal assist if you're looking for a workout, and use the higher levels to help you get to the top of that hill! If you're not looking to be pedaling at all then the throttle is there to power you along at up to 20mph.
|
MOTOR 750W (Peak), 48V Brushless Rear Hub Motor 500W (Sustained) |
THROTTLE Throttle on demand - Throttle from a complete stop |

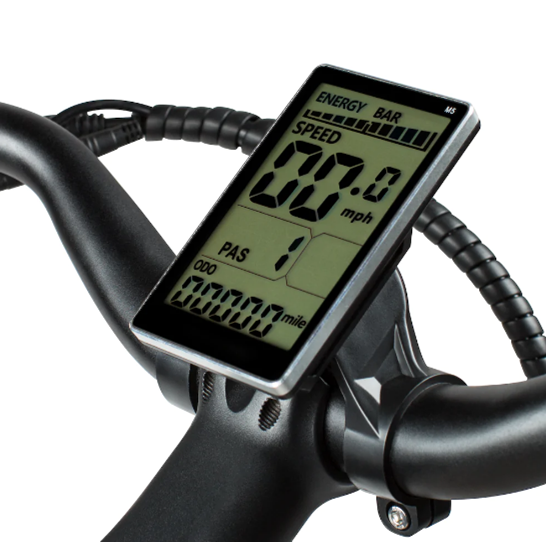

DISPLAY LCD Smart Easy Read Display with Backlight |
|
SPEED Up to 28 MPH on Pedal Assist and 20 MPH on Throttle |
BATTERY Removable Lithium-ion 48V, 11.6Ah (556.8Wh) |
SENSORS Cadence Sensor |
|
PEDAL ASSIST 5 Levels |
CHARGER Included is a 48V 3 Amp Fast Charger, 3-4 Hour Charging |
RANGE 25-40 Miles Average |
|
FRAME 6061 Double-Butted Aluminum Alloy |
WEIGHT 49lbs |
PEDALS 9/16" Alloy Platform |
|
WEIGHT LIMIT Maximum Payload Capacity: 300 lbs |
FORK 6061 Aluminum Alloy, tapered |
BOTTOM BRACKET Square Taper, Sealed |
|
CRANKSET 170mm, 42T |
BRAKES Hydraulic Disc Brakes w/ 180mm Rotors |
REAR DERAILEUR 8 Speed |
|
CASSETTE 11-32 Cassette, 8 Speed |
SHIFT LEVER 8 Speed |
CHAIN 8 Speed |
|
RIM Double Wall Aluminum 36h Front & Rear |
SPOKES Black Stainless |
TUBES Butyl Rubber, Schrader Valve |
|
HUBS 36H Disc Nutted Front and Rear |
TIRES 27.5" x 2.2" Ebike Rated |
SADDLE Aventon Velo Comfort, Steel Rails, 245mm wide |
|
SEATPOST Forged Alloy, 31.6mm, 2-Bolt Clamp |
HEADSET VP Sealed Bearing Headset |
SEAT CLAMP Quick Release |
|
HANDLEBARS Aluminum 31.8 15 Degree Sweptback |
GRIPS Ergonomic Comfort |
STEM Threadless, Adjustable 31.8mm |
Pace 500 ships as a Class III ebike with throttle on demand and pedal assist. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and Pace 500's powerful motor can go up to about 4 MPH above the factory set top speed. Pace 500 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed.
Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride or park your ebike in the rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.
