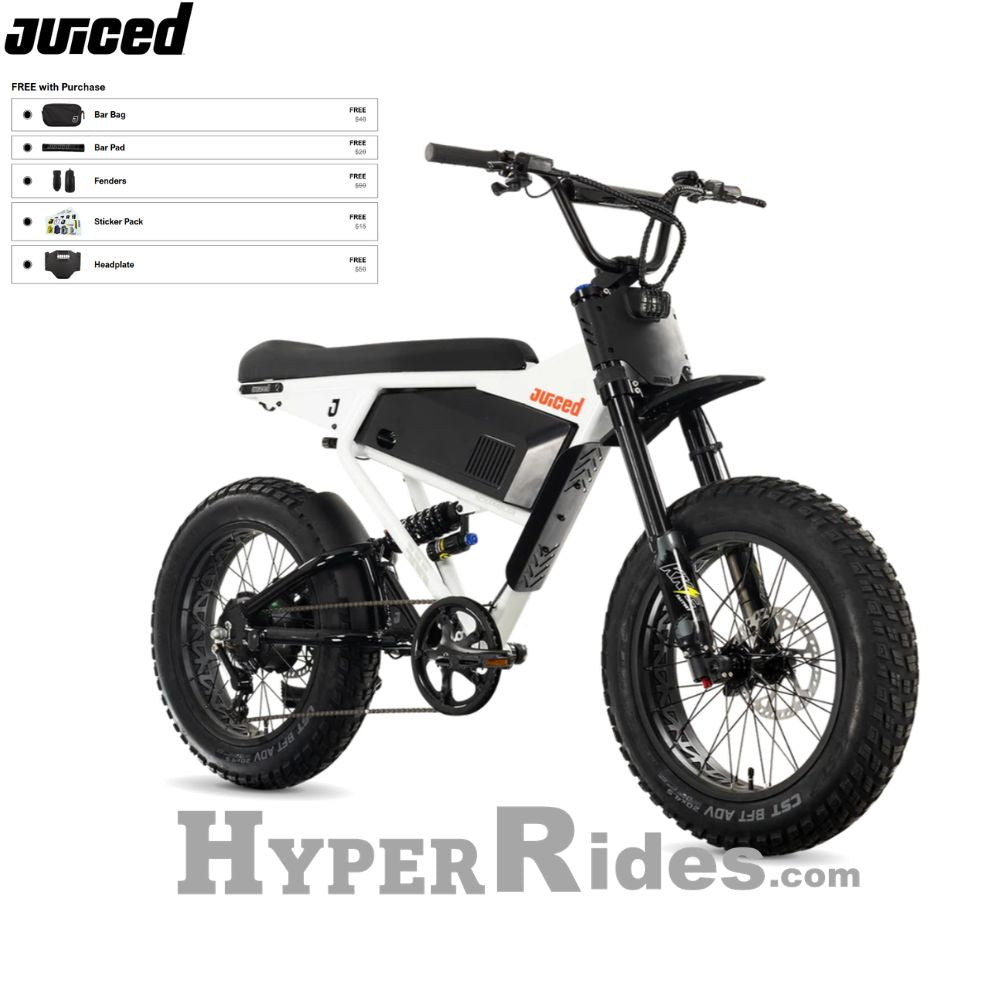

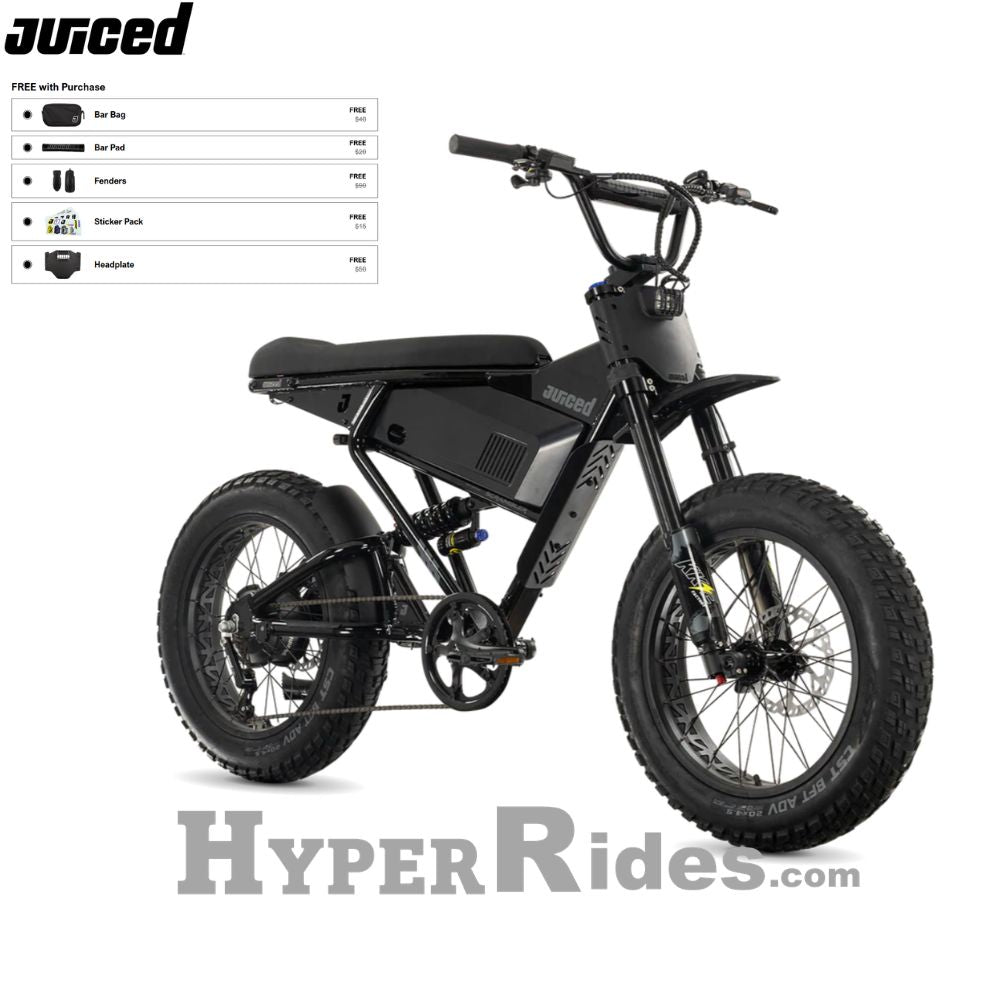

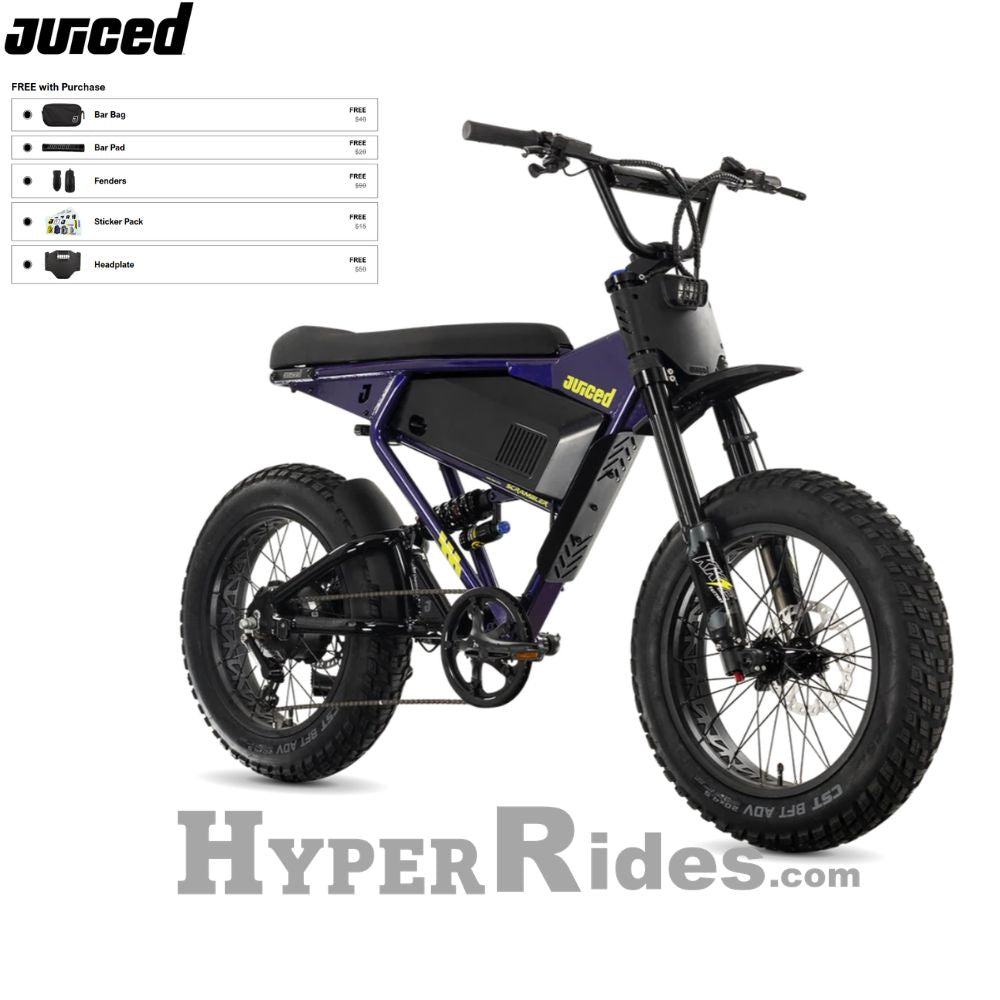

Juiced Scrambler eBike

Full Suspension (FS) Specs

• Motor 1764W Peak Hub Motor / 750W Nominal / 90Nm of Torque
• Battery 52V 19.2 Ah
• Throttle Right thumb throttle / 20 mph max speed
• Tires Knobby CST BFT ADV 20x4.5 in
• Brakes Talon 4-Piston
• Frame 6061 Aluminum
• Bike Weight 85 lbs
• Class 1, 2, or 3 ebike
• Suspension KKE inverted front fork 140mm travel and KKE Rear shock
• PAS 4 Levels
• Gearing Single Speed
• Display Integrated TFT
• Lights Front Headlight Rear Tailight & Brake Light Turn Signals
• Controller 30-amp peak
• Parental Lock Set top speed between 1-28 mph locked behind 4 digit PIN
• Sensor Switch between Torque or Cadence

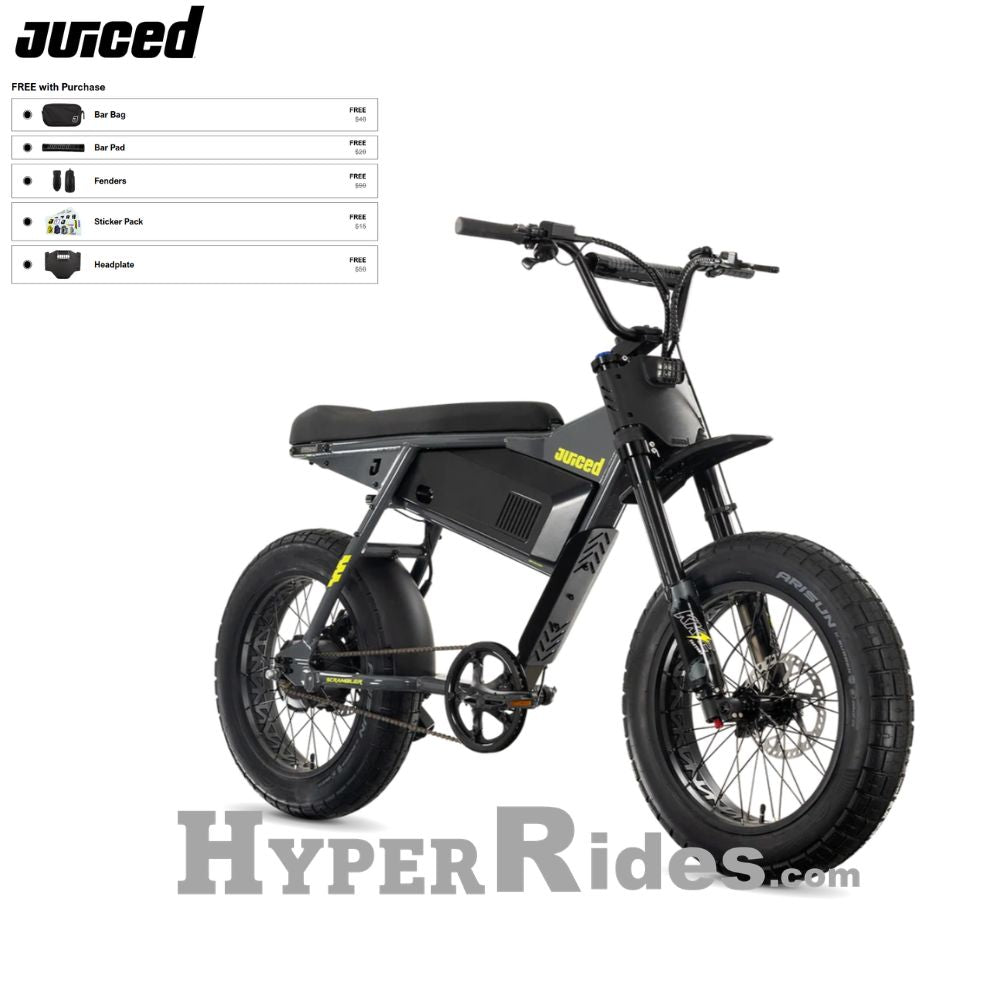

Hardtail (HT) Specs

• Motor 1764W Peak Hub Motor / 750W Nominal / 90Nm of Torque
• Battery 52V 19.2 Ah
• Throttle Right thumb throttle / 20 mph max speed
• Tires Chaoyang 20x4 in.
• Brakes Talon 4-Piston
• Frame 6061 Aluminum
• Bike Weight 83 lbs
• Class 1, 2, or 3 ebike
• Suspension KKE inverted front fork 140mm travel
• PAS 4 Levels
• Gearing Single Speed
• Display Integrated TFT
• Lights Front Headlight Rear Tailight & Brake Light Turn Signals
• Controller 30-amp peak
• Parental Lock Set top speed between 1-28 mph locked behind 4 digit PIN
• Sensor Cadence

Size Guide for both Full Suspension (FS) & Hardtail (HT)

• Rider Height 4’10” - 6’3”
• Bike Weight HT: 83 lbs | FS: 85 lbs
• Seat Height 31.5 in
• Display Integrated TFT
• Payload Capacity HT: 300 lbs | FS: 225 lbs
• Bike Dimensions LWH: 66 x 47 x 18.5 in
