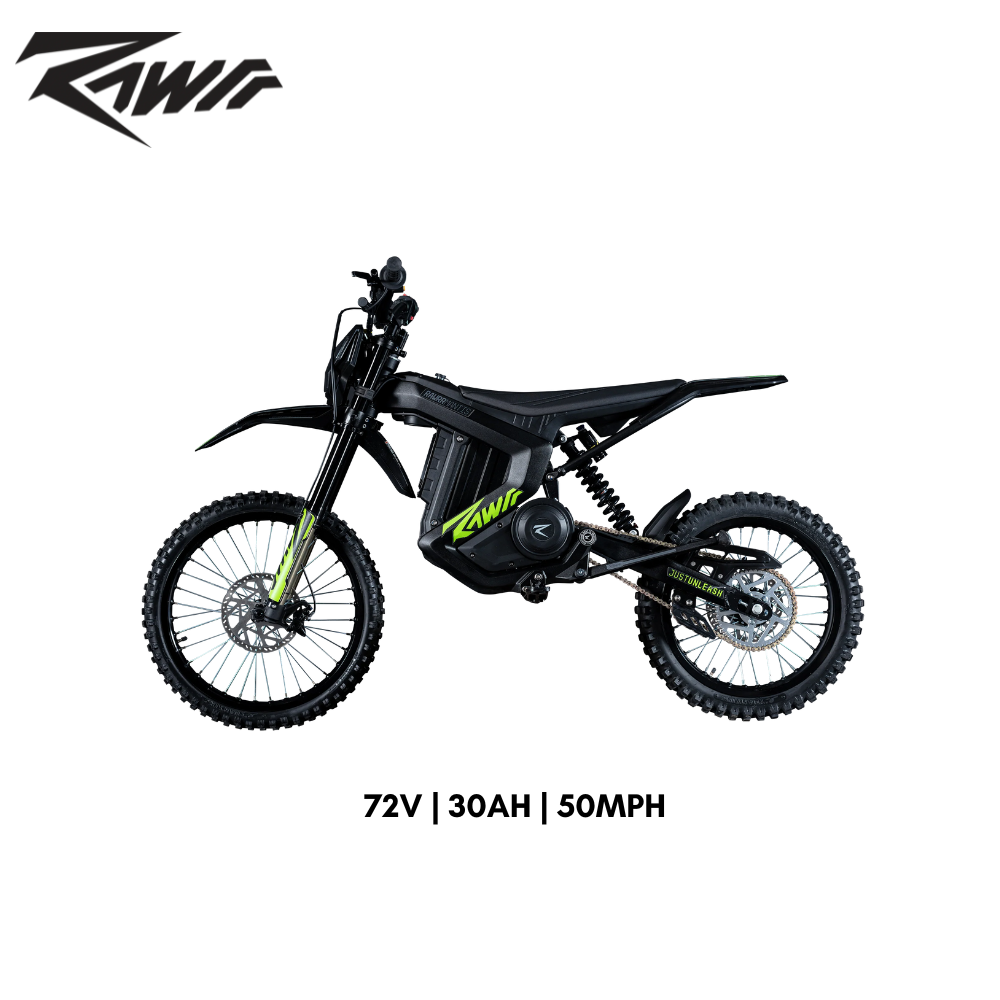

Rawrr Mantis X
Rawrr Mantis X
Couldn't load pickup availability
Description
32-inch seat hight, weighs 139 lbs with battery, and is designed to compete head-on with similar bikes in the eMoto category. It has a 19-inch front wheel, 17-inch rear wheel, great front-to-back balance, an LCG for quick transitions, and a solid top speed of 50MPH.
Performance
Top Speed
50MPH
Acceleration
0-19mph: 2s | 0-31MPH: 4s | 0-50MPH: 12.8S
Range
62 miles eco mode; 34 miles 40mph *
Max Torque
191.77 ftlb
Max Motor Power
6500W
Regular Motor Power
3000w
Climbing ability
45 degrees
Battery Type
Lithium Ion
Battery Cap
72V 2160wh
Battery Cycle Life
800 Cycles
Charger Input Voltage
AC110/220V
Charging Time
3-6 hours
Controller Type
FOC Sine Wave
Drive Modes
Eco/Sport/Race
Mechanical
Brake Type
4-piston Hydraulic Disc Brakes
Front Fork Travel Distance
8.27 in
Rear Suspension Travel
2.76 in
Rear Wheel Travel
7.087 in
Motor Cooling Method
Air-cooled
Motor Type
Brushless
Power Delivery
Gearbox and Chain Driven
Motor Max Operating Temperature
85 Degrees Celsius
Frame
6061 Aluminum Alloy
Measurements
Length
74 In
Height
43.7 in
Width
31.3 In
Max Clearance
13.2 in
Wheelbase
49.8 in
Seat Height
32 in
Front Tire Size
70/100-19
Rear Tire Size
90/100-17
Front Brake Rotor Size
220mm
Rear Brake Rotor Size
203mm
Vehicle Weight With Battery
139 lbs
Max Payload
220 lbs
Made for off road private land use.
