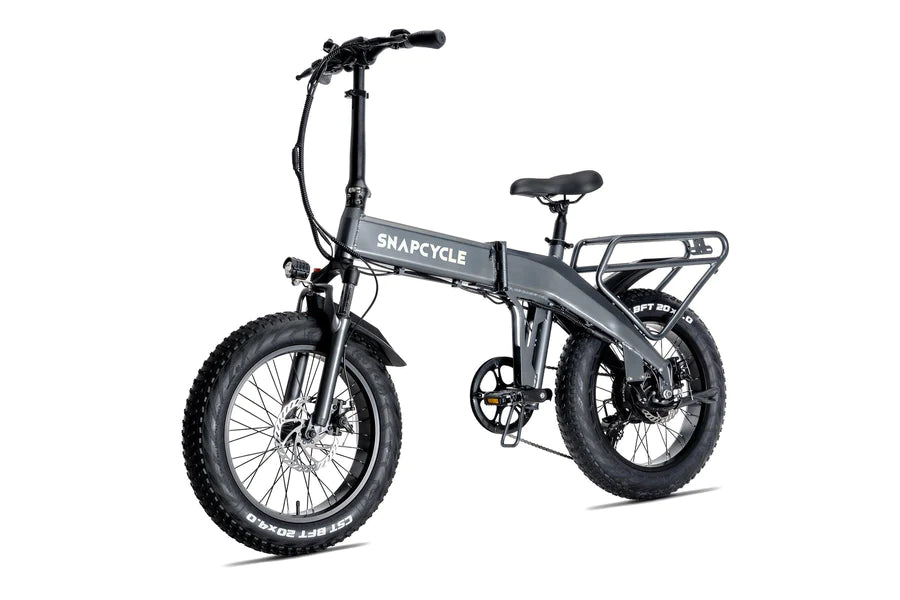

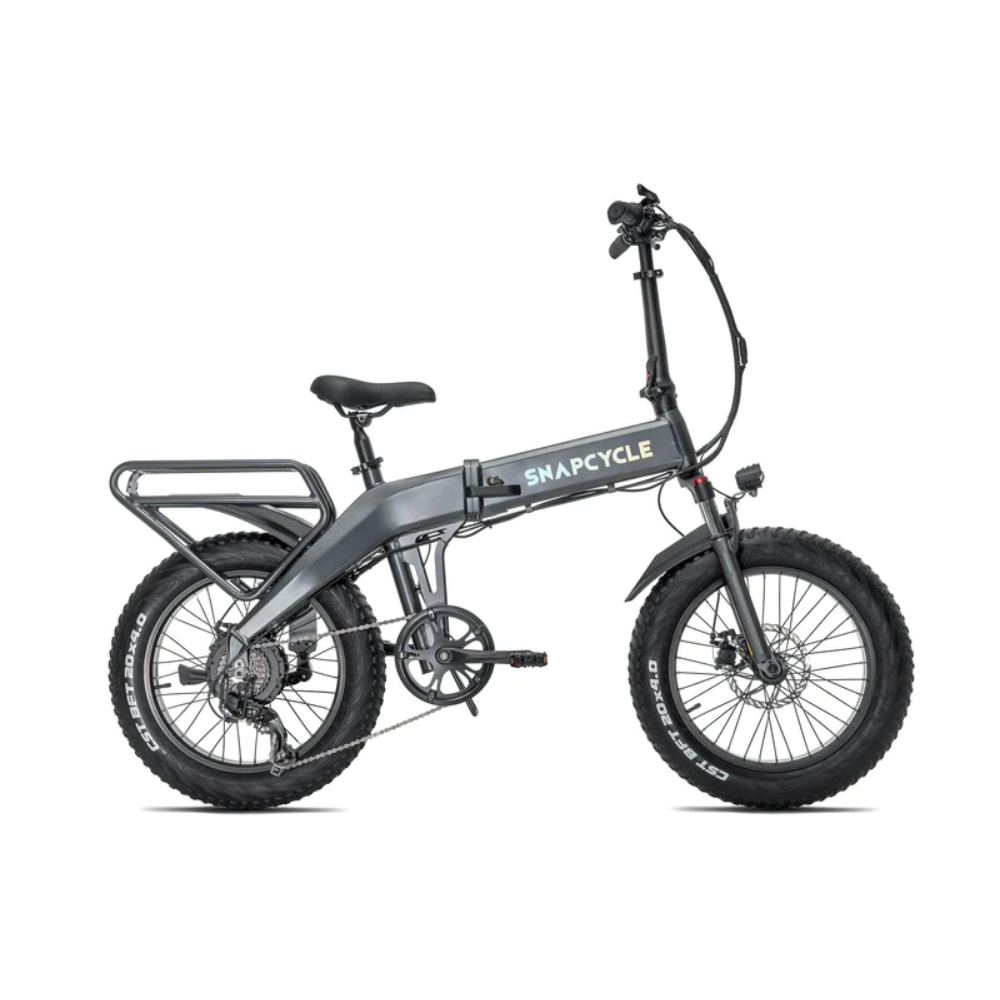

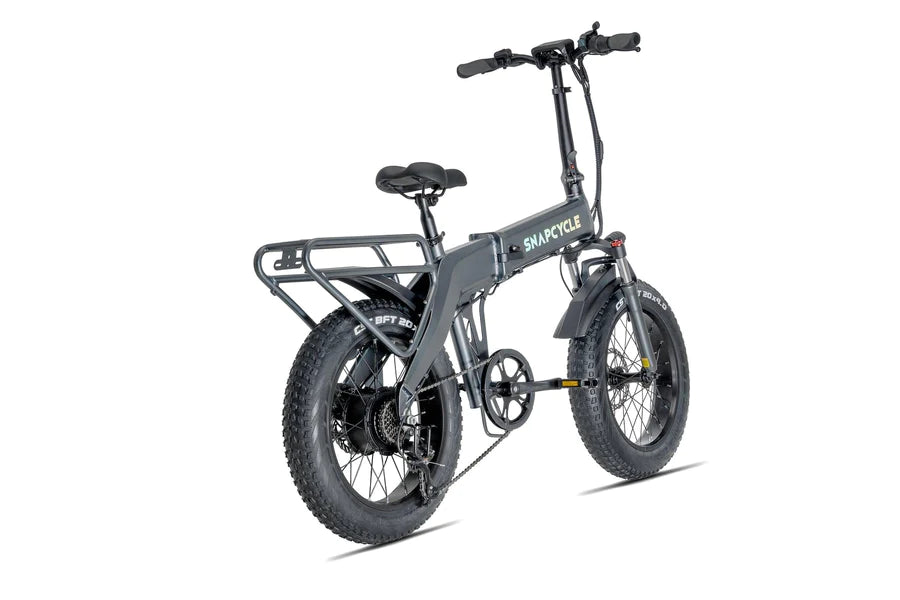

Snapcycle S1

Snapcycle S1

$1,299.00 USD
$1,499.00 USD $1,299.00 USD
Sale Sold out
Shipping calculated at checkout.
Assembly

FREE ACCESSORIES INCLUDED

Bike Rear Rack $89 Value

 Fenders $39 Value



TECHNICAL SPECIFICATION

  • Electric Bike Class Class 2 (configurable to Class 3 by the users)
  • Battery 48V 14Ah Samsung 35E lithium battery, CE Certified
  • Charging Time 4 ~ 5 Hours
  • Range <30~45 Miles
  • Hub Motor 750W brushless geared motor (Peak 1200W)
  • Total Payload Capacity <300 lbs
  • Recommended Rider Heights 5'2" ~ 6'4"
  • Weight <66lbs
  • Charger US standard 3.0 A smart charger, UL Certified
  • Controller 48V / 25A 12-Tube
  • Display Adjustable-Angle, Backlit, Grayscale 3.2'' LCD
  • Drive Mode Cadence Sensing Pedal Assist / Trigger Throttle
  • Pedal Assist Intelligent 0~5 level pedal assist
  • Dimension 65" L x 23" W x 48" H
  • Dimension (Folded) 39" L x 20" W x 31" H

COMPONENTS

  • Brake Calipers Snapcycle MDA16
  • Brake Levers Aluminium alloy comfort grip levers with motor cutoff switch
  • Crank Set 46T, 170mm Aluminium Alloy, Double-Sided Plastic Guard
  • Fender Half coverage, front and rear
  • Freewheel 7 Speed 14-28T Cassette
  • Grips Ergo
  • Headset Sealed Bearing Headset
  • Pedals Wellgo 9/16" Alloy Plastic, Foldable with Reflector
  • Saddle Snapcycle comfort foam saddle
  • Seatpost Clamp Quick-Release type
  • Spokes Stainless Steel, 12 Gauge, Black with Silver Nipples
  • Brake Rotors 180 mm front and rear
  • Chain KMC chain with 112 chainlinks
  • Derailleur 7-Speed Shimano Tourney
  • Fork Spring Suspension, 30mm Travel, Lockout and Preload Adjustment
  • Gearing 1 x 7 Speed
  • Handlebar Aluminum Alloy, 6 Degree Angle, 600mm Width, 25.4mm Bore
  • Kickstand Heavy-duty aluminum stand
  • Rims Aluminum Alloy, 20 inch, Double Wall
  • Seatpost Aluminum Alloy, 350mm x 33.9mm Dia
  • Shifter Shimano SIS Index Thumb Shifter
  • Tire CST BFT 20”X4.0” fat tire

GEOMETRY

S1 Ebike Dimension

  • A. Total Length 65"
  • B. Handlebar Height 48" - 53"
  • C. Wheelbase 42.1"
  • D. Minimum Seat Height 28.3"
  • E. Maximum Extension 7.1"
  • F. Chain Stay Length 16.3"
  • G. Standover Height 28.7"
  • H. Top Tube Length 24.8"
  • I. Wheel Diameter 22.4"
  • J. Head Tube Length 5.1"
  • K. Handlebar Length 23.2"
