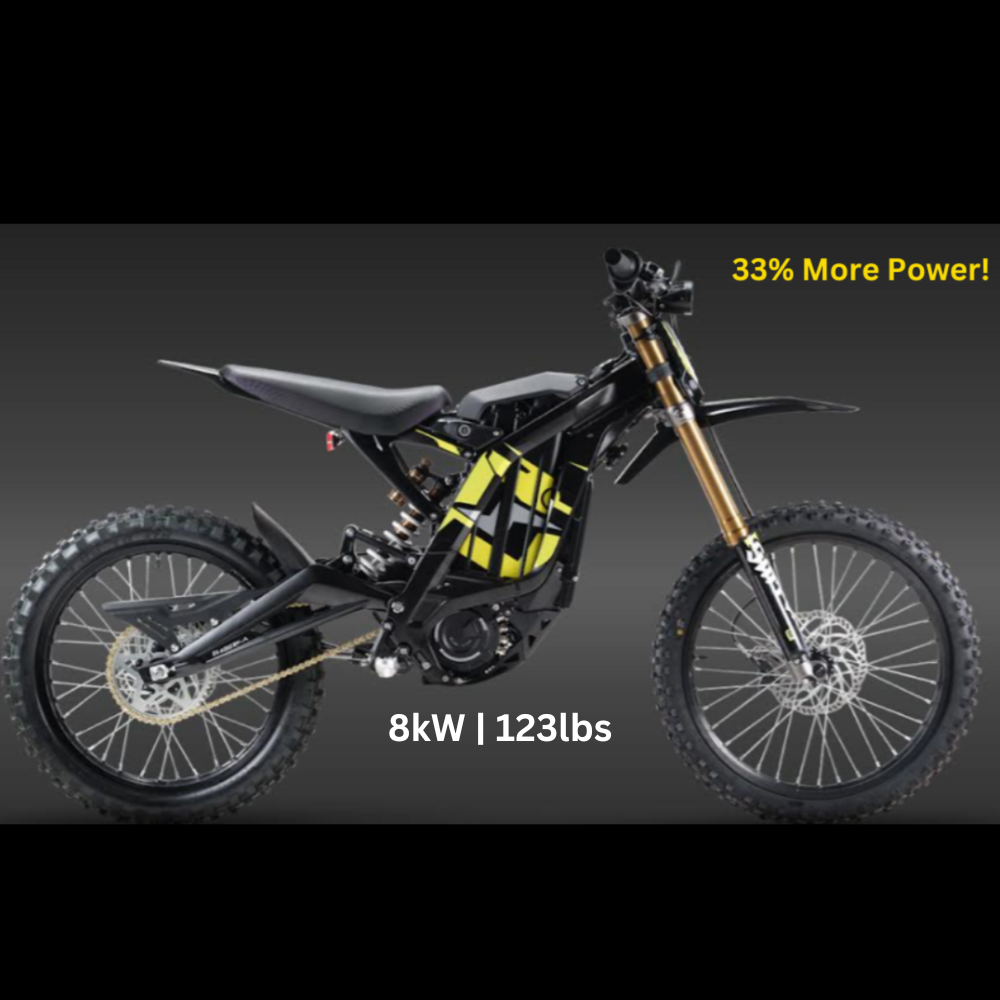

SurRon Light Bee X 40ah - Black Frame
SurRon Light Bee X 40ah - Black Frame
Couldn't load pickup availability
Pick Up Option: After deposit payment, please wait for our ready to pick up email. Remaining Balance must be paid by CASH / Venmo in store. Delivery option will have a separate shipping quote provided after check out. Finance fee is additional 7.99%.
Why purchase the Surron X Light Bee from Hyper Rides?
We are Sur Ron #1 Northern California Authorized Dealer. We are located in the greater Sacramento area in Rocklin and Marysville. When you purchase from Hyper Rides, you can contact us for support by phone, or in person, not just an email.
Surron LIGHT BEE X - Frame Includes Removable Orange Decal
The electric, off-road Light Bee X promises advanced fun on all terrain.
The Light Bee X offers 60V of power from a removable Panasonic lithium ion battery pack. A forged, lightweight alloy frame, combined with hi-spec components, results in a total weight of just 47 kg. 4-piston hydraulic disc brakes are mounted front and rear. The LCD dash is handlebar-mounted, and a convenient USB charger sits right in front of the rider. With a climbing ability of over 45 degrees, up to 100 km of range and a short 2.5-3.5-hour charge time, the Light Bee X offers hours of near-silent fun.
For private / off road use
Updates to our models include:
- Sine wave controller for smoother power with more torque, plus ReGen for improved range
- Improved riding position: wider, thicker seat combined with a wider, higher handlebar
- Heavier-duty gold O-ring chain for lower maintenance and reduced noise
- Updated brakes: 4-piston, titanium-finished calipers, now with sintered pads for improved heat dissipation and braking power
- Pro handlebar grips in grey
Ultra Lightweight Frame
The Light Bee's 7.8 kg frame is constructed of aviation-grade aluminum alloy via a fully automatic welding process that ensures consistency in production.
High Performance Brakes
The braking system features opposed, four-piston hydraulic calipers with metallic brake pads and 203 mm discs for safe and reliable stopping power.
Sporty Performance
In SPORTS mode, the Light Bee X puts out 6 kW of power and 250 Nm of torque. That's more than enough for tackling jumps and climbing hills!
SPECS
- 6,000W peak power (750W with factory-installed speed limiter)
- Top speed: <46 mph
- 184 ft-lb (250 Nm) peak torque
- Range: <46 miles at 25 mph
- Simple & quick charging: connect to standard wall outlet via included charger. Charges to 100% in ~3 hours
- Easy to handle and maneuver: 123 lb curb weight, low 32.6" (830 mm) seat height
- Adjustable off-road suspension
- Regenerative braking
- 45-degree climbing angle
MOTOR
| Motor Type: | PMSM |
| Weight / Motor External Diameter: | 7.0kg / 180mm |
| Motor Axial Length: | 130mm |
| Peak Efficiency: | 95.60% |
| Cooling Method: | Air-Cooled |
| Controller Type: | X Version Sine Wave |
| Dimensions: | 240mm x 110mm x 50mm |
| Peak Efficiency: | 98.50% |
| Power Modes: | Eco and Sport |
MOTOR POWER SYSTEM
| Rated Voltage: | 60V (DC) |
| Rated Power / Peak Power: | 3,000W / 6,000W |
| Motor Shaft Output Torque @ 1000RPM: | 35.40Nm |
| Rated Rotation Speed: | 4300rpm |
| Peak Efficiency: | 97.8% |
| Range of Efficiency (≥80): | 1.4Nm - 21.5Nm |
CERTIFICATES
| Road Legal: | No |
TRANSMISSION
| Gear Ratio: | 1:7.6 |
| Transmission: | Primary Belt & 420 Drive Chain |
ELECTRICAL COMPONENTS
| Battery: | 60V 40AH |
| Battery Life: | 500 Cycles (reduces thereafter) |
| Battery Charge Indicator: | Integrated LCD Display |
| Charger: | 10A |
| Charging Time: | 2.5-3.5 Hours |
| USB Connection: | Single USB-2.1 A Socket |
| Speedometer: | LCD Digital Speedometer |
| Headlight & Rear Light: | LED |
VEHICLE
| Chassis & Swingarm: | Forged Aluminum |
| Chassis Surface & Colour Processing: | Anodic Oxidation |
| Front Suspension: | KKE, DNM, RST or Fastace, Adjustable for Preload & Rebound |
| Rear Shock Absorber: | KKE, DNM, RST or Fastace Shock with TR Suspension Link System, Adjustable for Compression & Rebound |
| Wheel Type & Size: | 19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs Tire Size: 70/100-19 Front/Rear |
| Max Range: | 100km (62miles) @ 32km/h (19.8mph) depending upon terrain |
| Net Weight: | 47kg (Plus Battery |
| Max Load: | 100kg (220 lbs.) |
| Max Climbing Angle: | 45 degrees |
| Rear Sprocket: | 48T |
| Side Stand: | With Kill Switch |
| Vehicle Dimensions: | 73.62" x 30.7" x 40.94" 1,870mm x 780mm x 1,040mm |
| Minimum Ground Clearance: | 270mm (10.62in) |
| Wheelbase: | 1,260mm |
| Seat Height: | 84-88cm (33in - 34.6in) |
*Unless otherwise noted, ALL products sold from Sur Ron™ and authorized dealers are sold with the sole intention for off road or race track use only. This product or products may not comply with some State, Federal, Provincial and/or Local laws, ordinances, regulations. The buyer takes full responsibility of the use of these products on their vehicle which may or may not conform to all applicable laws and regulations for on road or highway use.
