DESCRIPTION

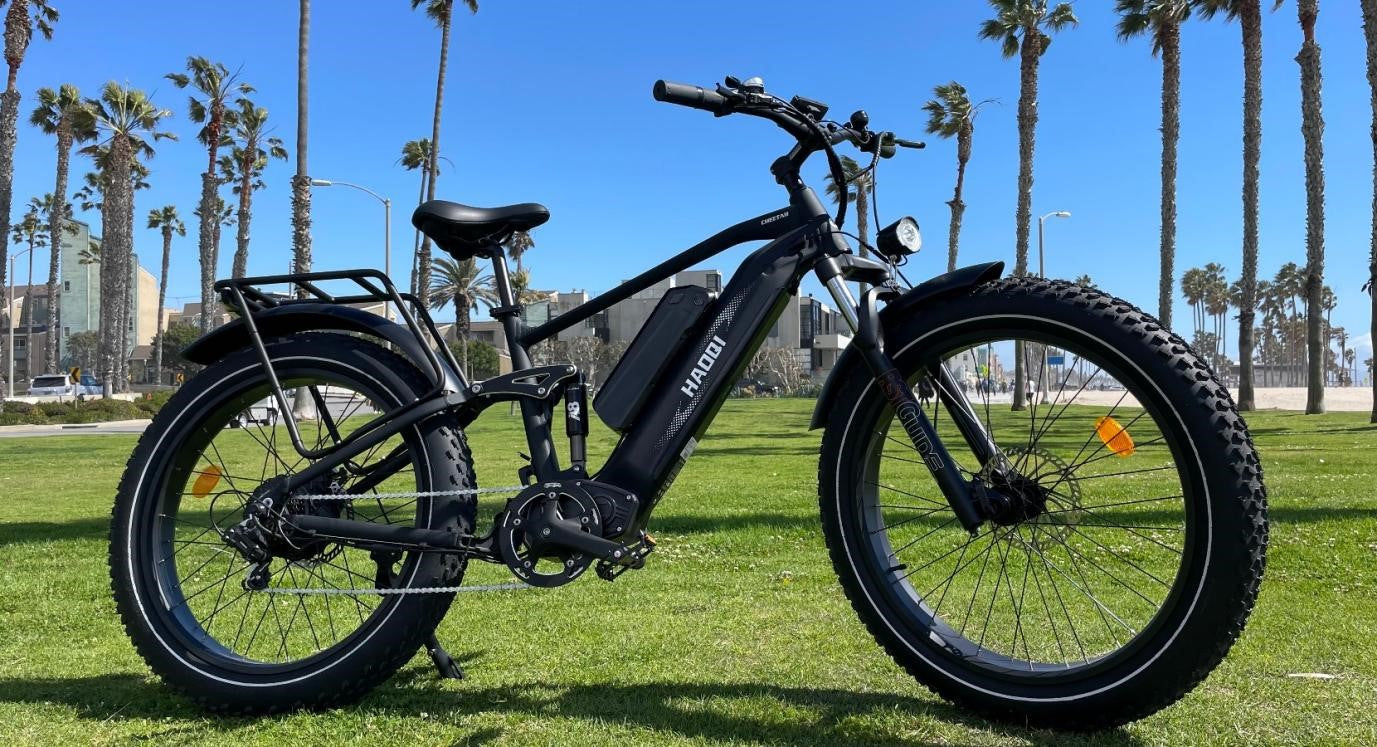

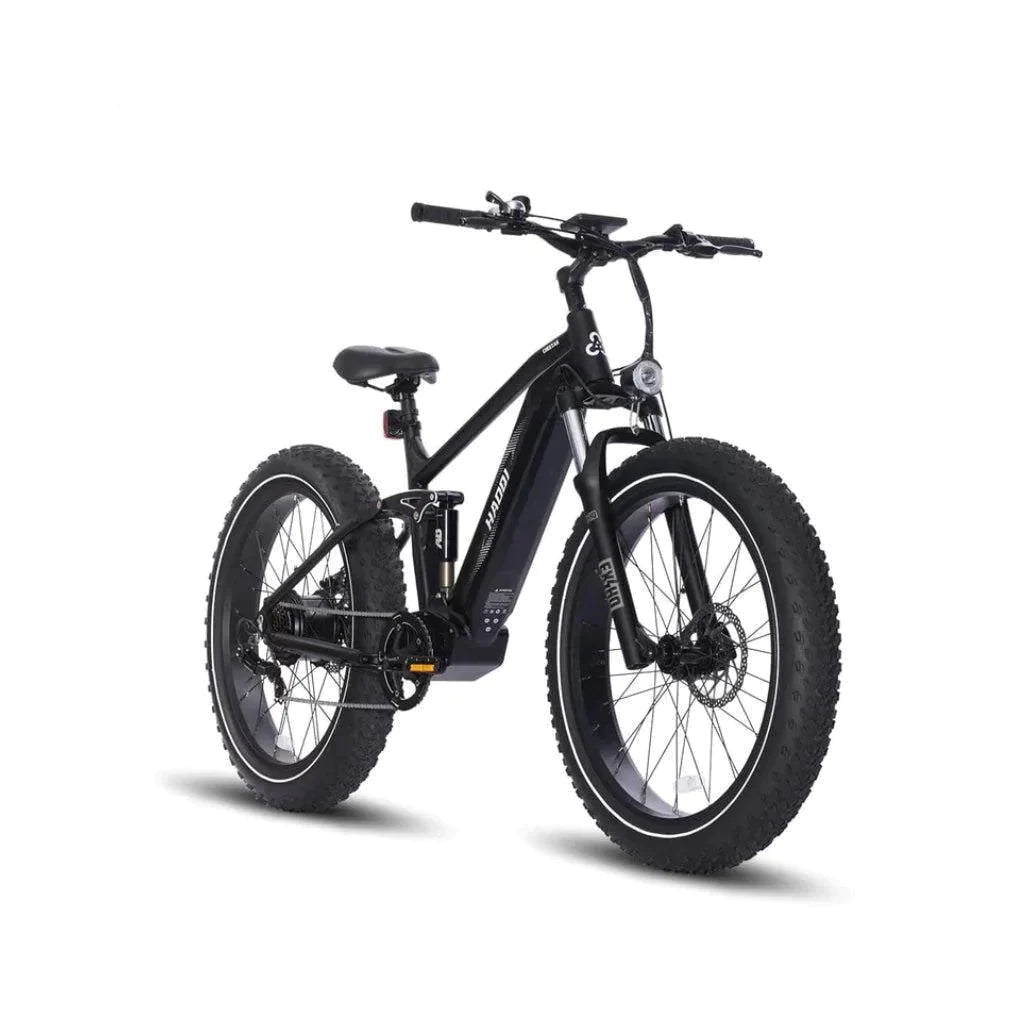

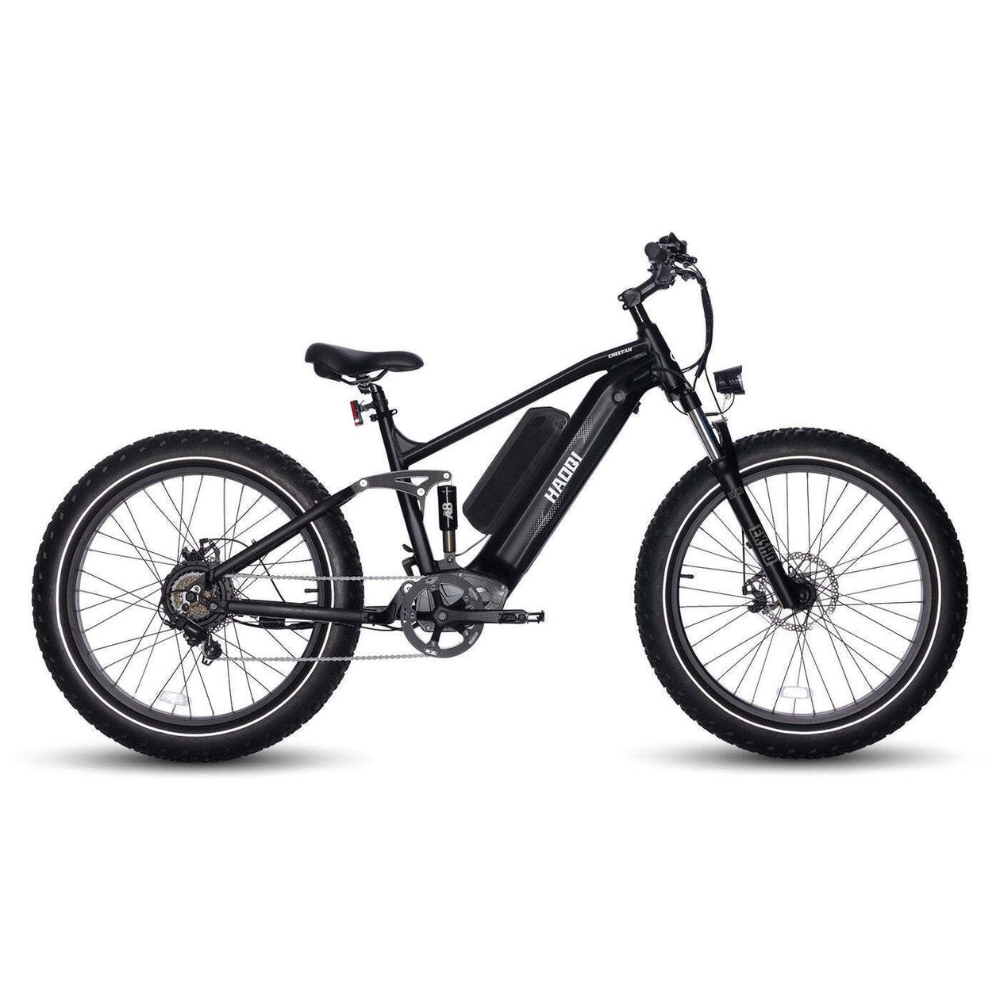

Cheetah is our Flagship ebike that guarantees the ultimate riding experience with its Dual Full Suspension System. Boasting a powerful 48V 25Ah battery, you can effortlessly conquer up to 85 miles on a single charge. Its ergonomically designed frame and fat tires provide unparalleled comfort on rough terrains such as snow, beaches, rugged mountain roads, and hills. The hydraulic brake system ensures maximum safety, making the Cheetah the perfect ride for adventure seekers.

TECHNICAL SPECIFICATIONS

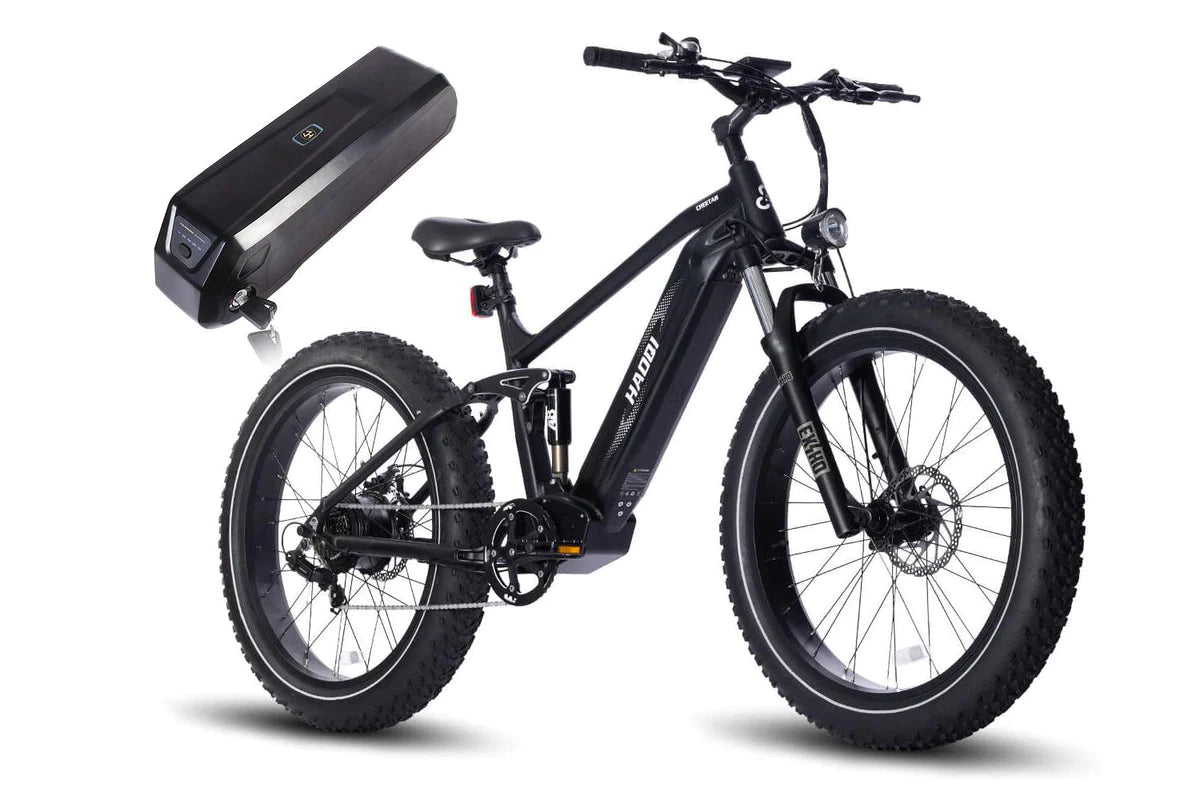

• Battery 48V 16Ah / 25Ah High-tech Lithium Battery
• Motor 750W High Speed Brushless Geared Motor
• Bike Frame 26” * 18” AL6061 M Mode
• Display KT-LCD10H E-bike Display USB
• Charger US Standard 2.0A Smart Charger
• Rear Cassette Shimano 7 Gears

• Pedal Assist Intelligent 5 Level Pedal Assist
• Tires 26” x 4”
• Charging Time 6~9 Hours
• Product Weight 73 Ibs
• Recommended Rider Heights 5.5” ~ 6.8”
• Total Payload Capacity 400 lbs

• Brake lever Alu alloy comfort grip levers with motor cutoff switch
• Chain KMC chain
• Freewheel Shimano 7 speed gear shift system
• Brake Hydraulic Disc Brake
• Stem Promax MA-400 SSABK
• Crank 170mm Forged Alloy
• Gearing Shimano- 14-28T BROWN/BK
• Front Fork RST Alloy front suspension fork with lockout and adjustment
• Rear Suspension FASTACE A8 / 850Bls / 185mm Length - Travel 50mm

• Throttle Half twist throttle
• Pedal Alloy pedal with reflectors
• Bike Frame 6061 Aluminum frame
• Headlight 48V LED light
• Handlebars Premium ergonomic
• Saddle Soft saddle
• Kickstand Heavy duty aluminum
• Seat post Diameter 30.4mm length 300mm
• Spokes Steel ED

For private / off road use

GEOMETRY
