DESCRIPTION

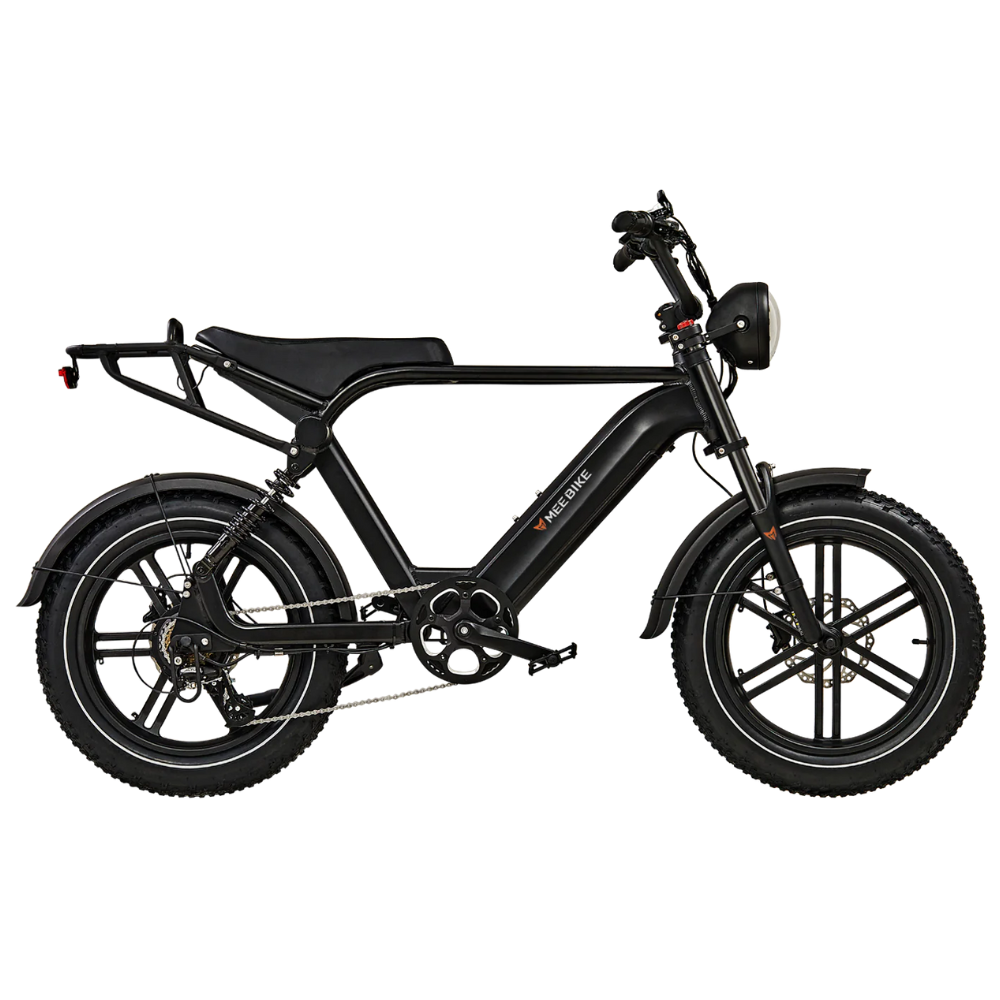

A tough-looking e-bike that’s built with utility and real world performance in mind, the Meebike Gallop is the perfect ride for around-town errands, off-road excursions, and trail riding adventures. Packing a beefy 750-watt rear hub motor and high capacity 960Wh lithium-ion battery, the Gallop comes well equipped and is highly capable for all-terrain riding fun.

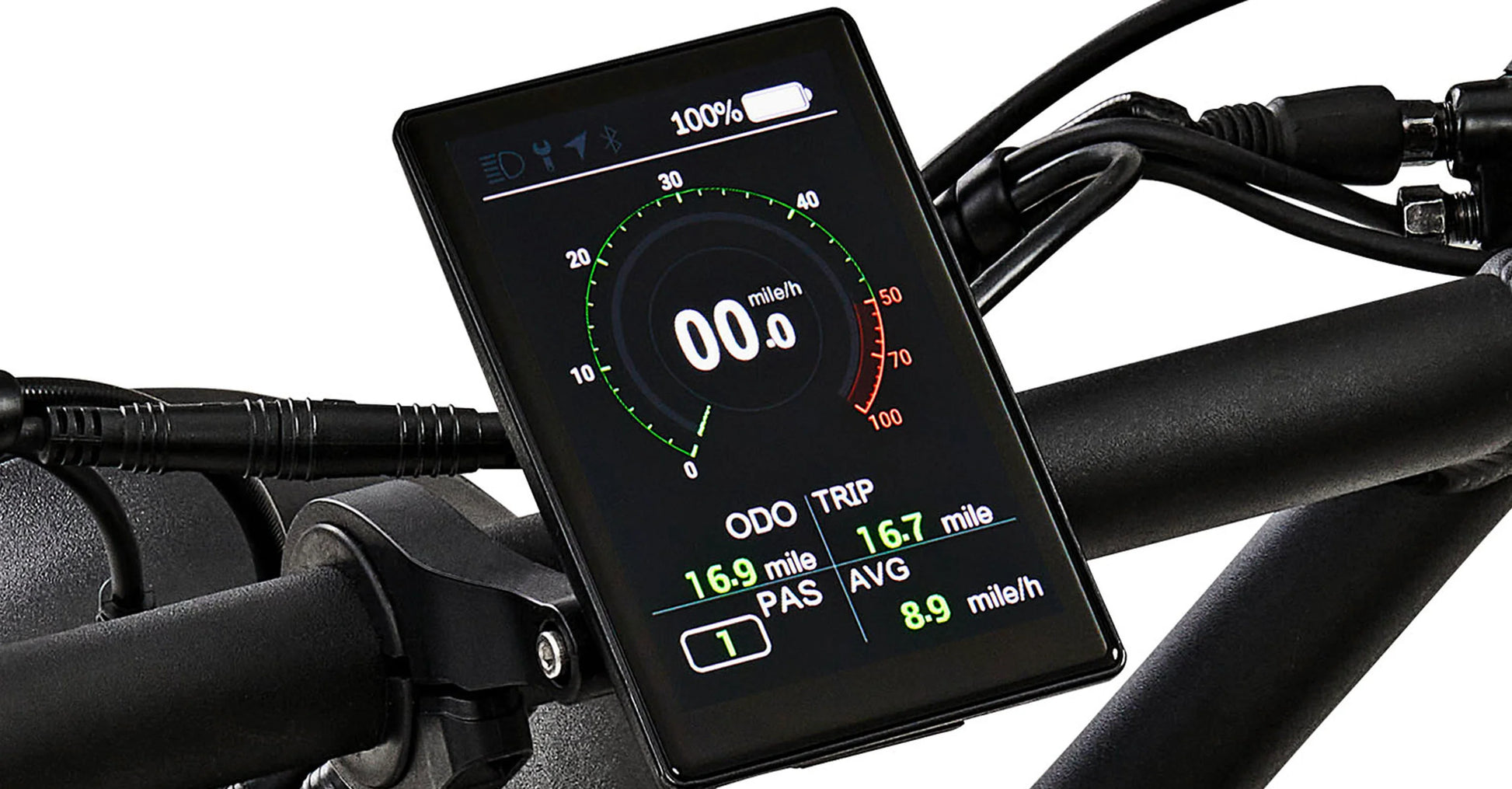

The Gallop’s 3-inch full-color TFT LCD screen is easy to read, and there’s also an LED headlight and taillight for improved nighttime visibility.

Meebike fitted the Gallop with adjustable BMX-style handlebars, and the riding position is comfortable even for longer distance cruising.

Located at the rear of the bike is a small cargo rack that provides just enough space for a bag or backpack, and there are front and rear fenders to shield the rider from road spray, sand, and small rocks.

TECHNICAL SPECIFICATIONS

• Range: <80MI
• Top Speed: unlocked <28MPH
• Motor: 750W Nominal / 1000W Max Peak
• Max Motor Torque: 85Nm
• Battery: 48V20AH Samsung/LG
• Display: TFT Full Color Backlight Display
• Charging Time: 6-9 Hours
• Estimated Weight: 72LB
• Payload Capacity: <330LB
• Sensor: BBTS3SD Torque Sensor
• Gears: Shimano- Altus-7SP

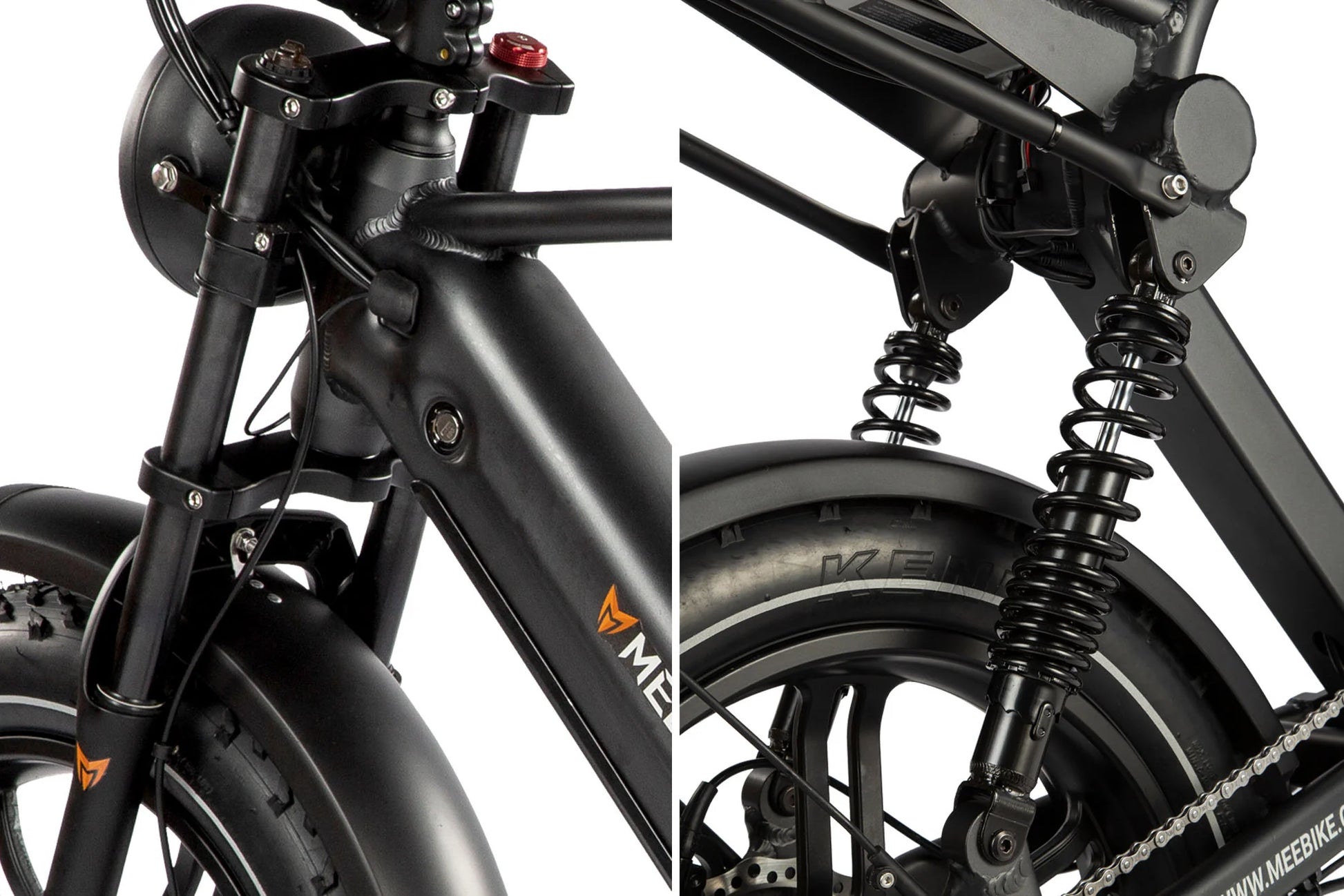

• Suspension: Dual Suspension
• Brakes: Hydraulic Disc
• Tyres: 20'x4' fat tires Anti-puncture and reflective Kenda tires
• Recommended Rider's Height: 5'4" - 6'4"
• Chain: Z8.3-7 Speed+EPT Rustproof
• Crank Alloy: SSA BK
• Fork: A6061 Aluminum
• Frame : A6061 Aluminum TIG Welded frame
• Freewheel: Shimano 7 Speed
• Front Fork: Aluminium alloy hydraulic
• Handlebar: Alloy SSA BK
• Pedal: Alloy Pedal
• Rear Derailleur: Shimano M310-ALTUS-7speed
• Rim: Aluminium alloy integrated wheel
• Saddle: HQ-Comfort saddle
• Seat Post: 242W@35 Alloy/SP-252@30.4*350L
• Shifter: Shimano SL-RS35-7 Tourney

GEOMETRY
